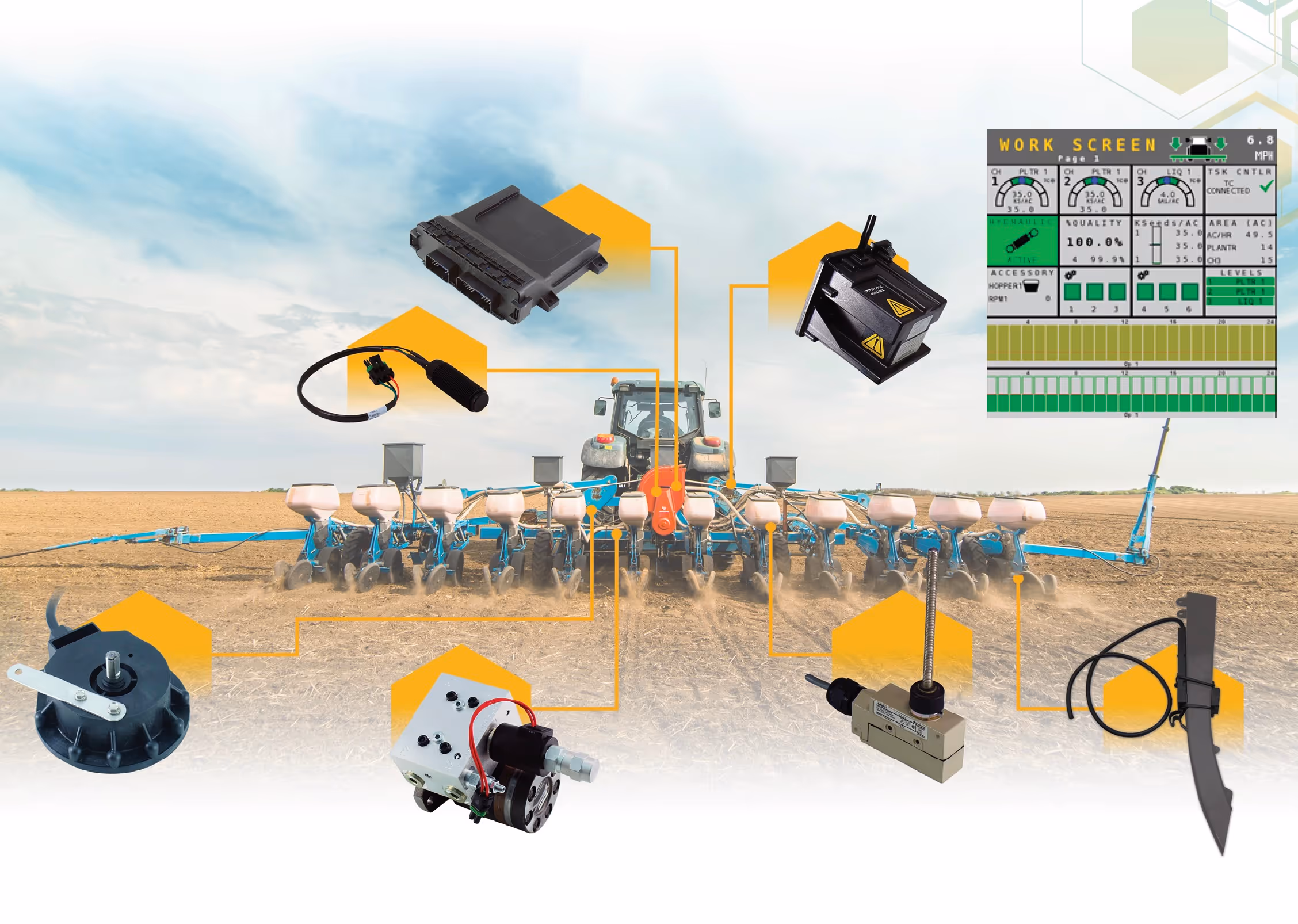

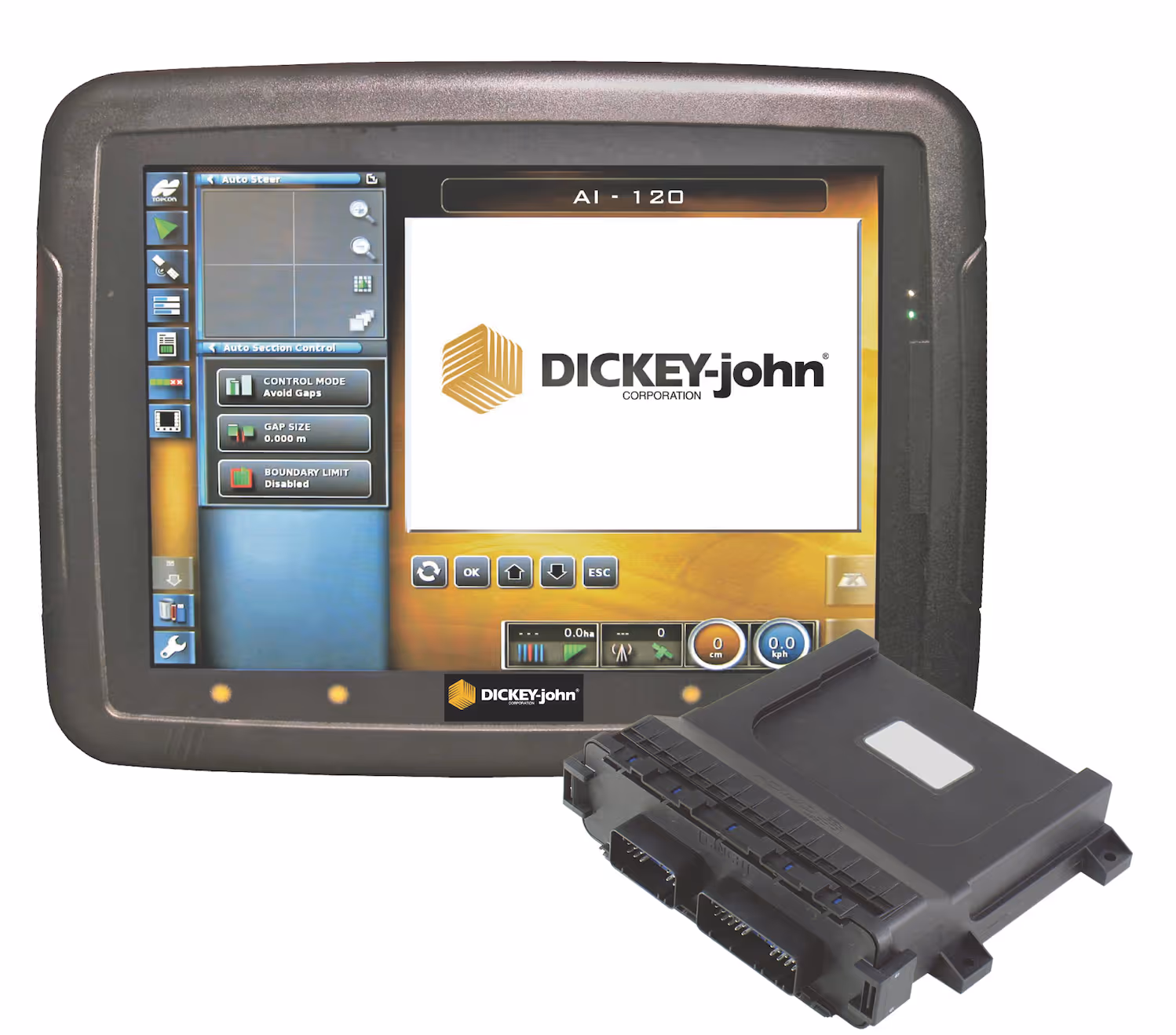

ISO6 will convert any mechanical or hydraulic driven planter to ISOBUS, section control, variable rate + fertilizer + insecticide + liquid in just 1 screen of your ISOBUS cab terminal.
Features and benefits include:
- Planter monitor functionality (max. 196 rows)
- Up to 8 independent control channels for:
- Row crop planter seeding (seeds/ha)
- Grain drill seeding (kg/ha)
- Liquid spraying (l/ha)
- Granular fertilizer (kg/ha)
- Control over the number of seeds planted per hectare and ease of use to set the desired target material rate and go
- Prescription variable rate flexibility to increase or decrease the population as you drive through the field
- Prescription variable rate flexibility to increase or decrease the rate of each bin as you drive through the field

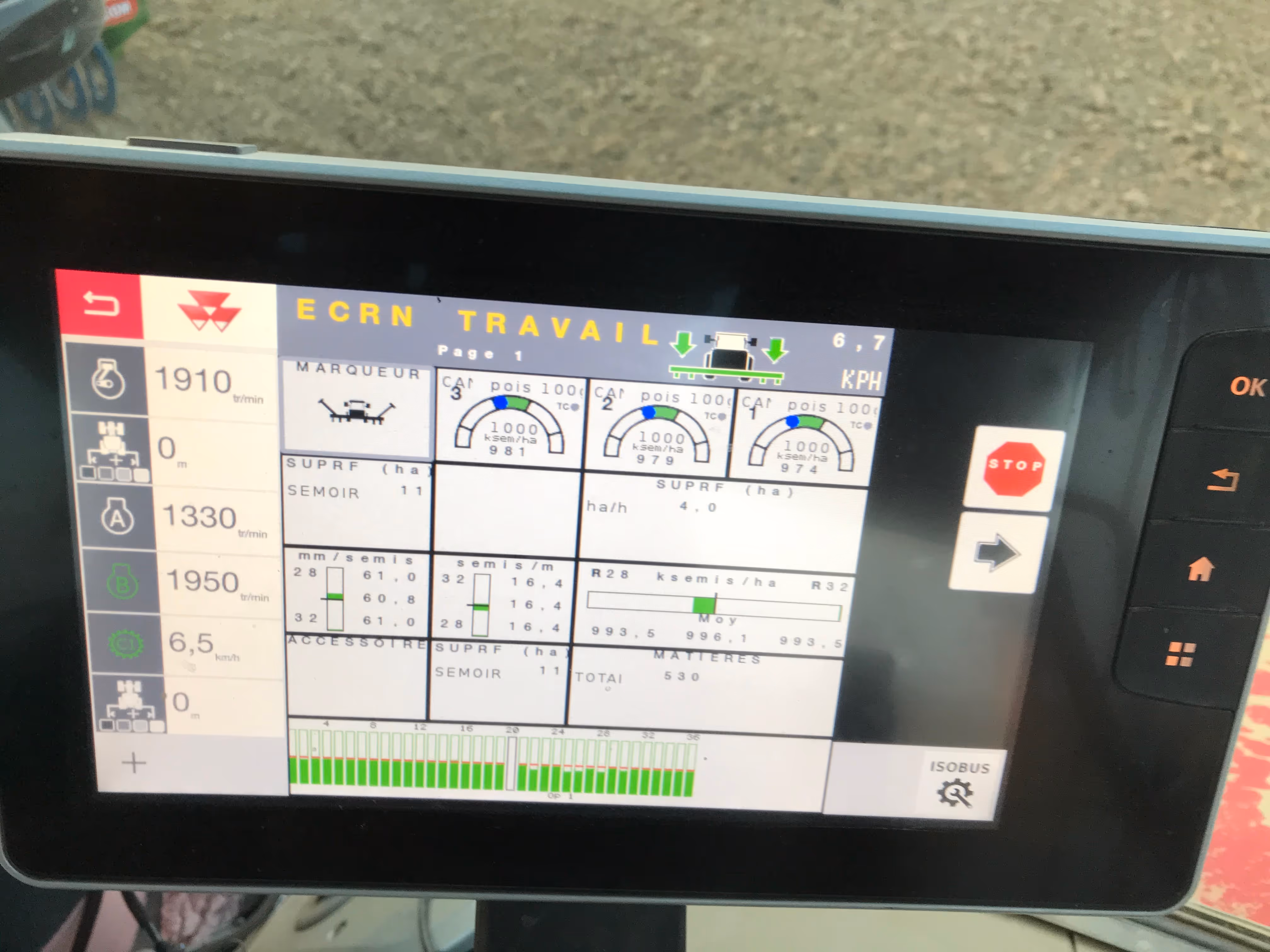

- After loading selected prescriptions stored on the SD card, the variable‐rate map will be displayed on the terminal. During the application of prescribed materials, an as‐applied map is displayed over the prescription map. *Note that functionality may vary depending on VT capabilities and farm prescription software must be compatible with FODM applications.
- Manual population rate changes from the cab or by using prescription application rates loaded into the IntelliAg® from your computer
- Monitoring of 16 seed sensors (more sensors with accessory modules) along with accessory implement sensors including 2 hopper level, 2 air pressure, 2 shaft RPM, 1 ground speed sensor, and 1 lift switch
- Task Controller functionality may include (depending on the virtual terminal’s capabilities) variable‐rate application of up to 4 variable‐rate prescriptions simultaneously, logging as‐applied rates and autosteering CFFE file
- Auto row shutoff control that utilizes Tru Count Clutches (24 rows)

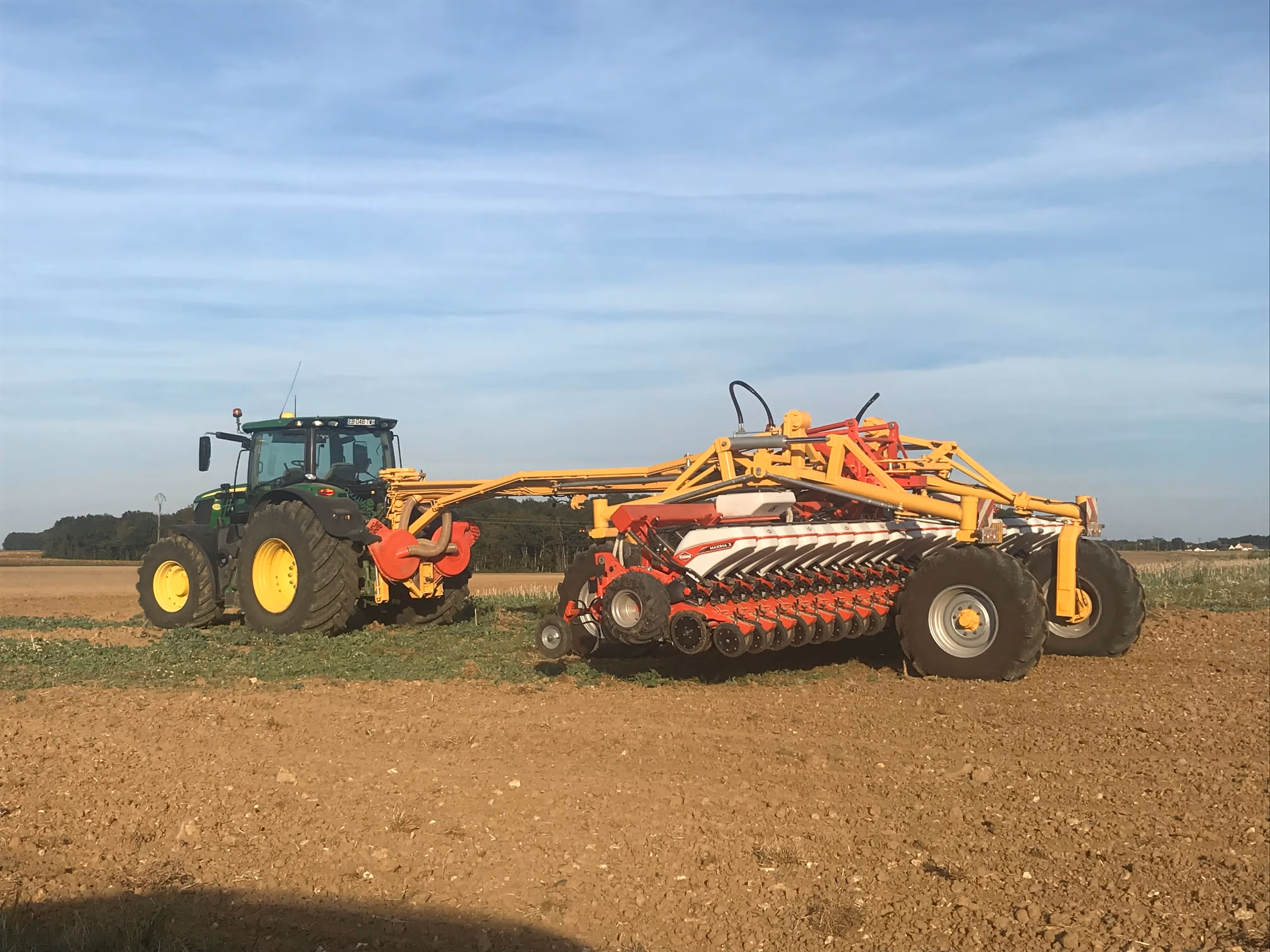

- The IntelliAg® ISO6™ planter/drill system is AEF certified and can be connected with an ISO Compliant Virtual Terminal already in your tractor: John Deere, Case IH, New Holland, AGCO, Trimble, Ag Leader, Topcon and Kverneland,etc.
The base kit includes:
- System power harness with ISO hitch connector
- Hitch extension harness
- ISO6 module in a protective steel box
- ISO6 T harness
- All required harnesses to connect to your equipment
More about DICKEY-john’s IntelliAg®
IntelliAg® puts the future of application control in your cab providing state-of-the-art communication between implement and tractor. The IntelliAg® precision farming system monitors and controls, with just one terminal eliminating the need for multiple controllers. Because IntelliAg® is designed for the ISO 11783 standard, it is interchangeable with other manufacturers’ compatible equipment.
