ISO6 modernizes mechanical air seeders and planters to Isobus, variable rate, section control, tramlines, individual row control and can control up to 8 different products. Bring a 20th century machine to the 21st century in a single day. Why change a seeder if you can upgrade for a few thousands €?
Features include:
- Planter/seeder monitor functionality (max. 216 rows)
- up to 8 independent control channels for:
- Air seeder seeding (kg/ha)
- Grain drill seeding (kg/ha)
- Liquid spraying (l/ha)
- Granular fertilizer (kg/ha)
- Control over the kilograms of seed, fertilizer or liquid that are applied per hectare by each air cart bin independently to set a desired target material rate and go
- Automatic section control
- Prescription variable rate flexibility to increase or decrease the rate of each bin as you drive through the field

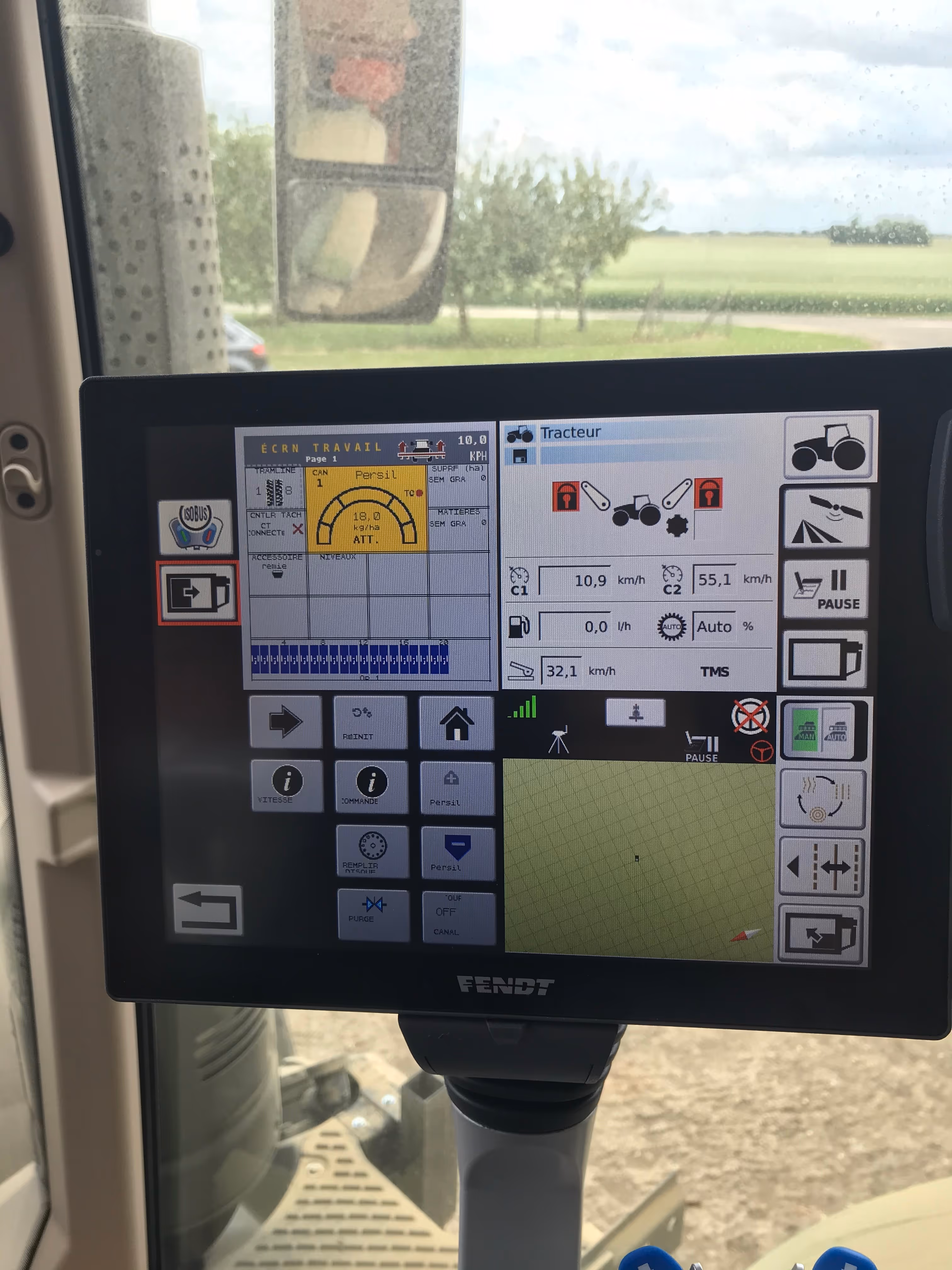

- After loading selected prescriptions stored on the console , the variable‐rate map will be displayed on the terminal. During the application of prescribed materials, an as‐applied map is displayed over the prescription map. *Note that functionality may vary depending on VT capabilities and farm prescription software must be compatible with FODM applications.
- Manual population rate changes from the cab or by using prescription application rates loaded into the IntelliAg® from a prescription farming VRT map
- Monitoring of accessory implement sensors including 5 hopper level, 4 air pressure, 4 shaft RPM, 1 ground speed sensor, and 1 lift switch
- Task Controller functionality may include (depending on the virtual terminal’s capabilities) variable‐rate application of up to 4 variable‐rate prescriptions simultaneously, logging as‐applied rates and autosteering CFFE file
- The IntelliAg® air seeder control system is AEF certified and can be connected with an ISO Compliant Virtual Terminal already in your tractor: John Deere, Case IH, New Holland, AGCO, Trimble, Ag Leader, Topcon and Kverneland,etc
The base kit includes:
- Hitch extension harness
- ISO6 module in a protective steel box
- ISO6 T harness
- Control harness for connection to valves and feedback sensors
More about DICKEY-john’s IntelliAg®
IntelliAg® puts the future of application control in your cab providing state-of-the-art communication between implement and tractor. The IntelliAg® precision farming system monitors and controls, with just one terminal eliminating the need for multiple controllers. Because IntelliAg® is designed for the ISO 11783 standard, it is interchangeable with other manufacturers’ compatible equipment.
