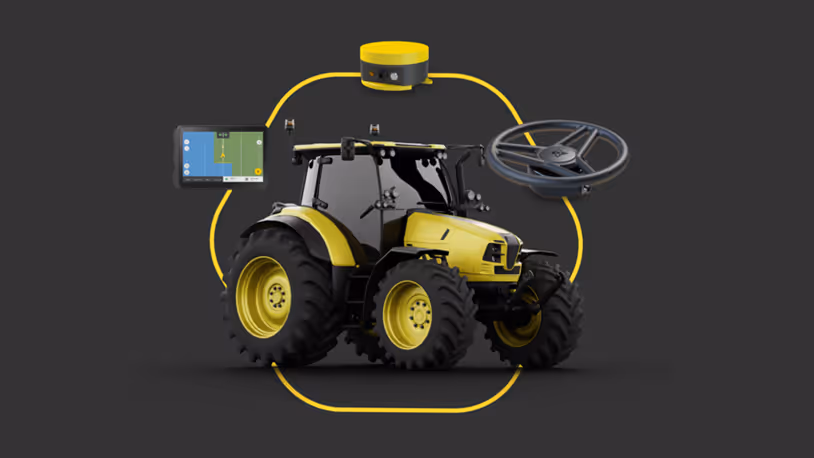

PowerSteer Autosteering System

An ultimate hands-free precision solution designed and manufactured in Europe. This easy, affordable autosteering system is comprised of:

  • All-in-one controller — the newest FIeldBee GNSS receiver and controller, that provides ±20 cm accuracy without correction signal, and ±2.5 cm accuracy with RTK. It also includes a tilt compensation sensor and controller for automatic steering.

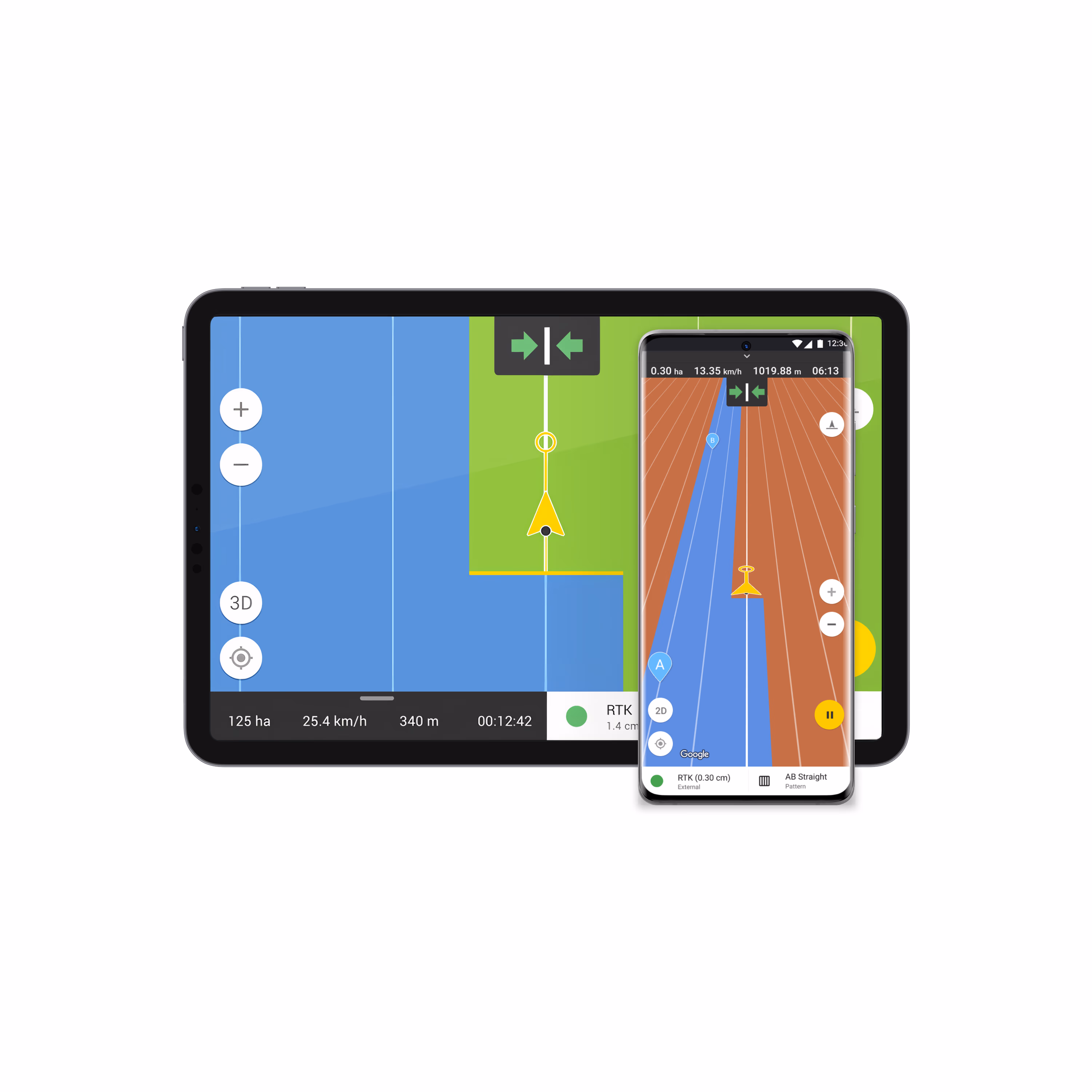

  • FieldBee Navigation app — one of the best tractor navigation applications with different navigation patterns, record-keeping functionality, field management and many more features.
  • PowerWheel – a replacement for the standard steering wheel with a motor that fits almost all tractor models, easy to install and transfer between vehicles.

Details

Kit  Composition

  • GNSS  antenna  and  mounting
  • Electrical  harness  between  antenna  and  steering  wheel
  • Steering  wheel  with  electric  motor  on  the  hub  and steering  wheel  hub  adapter
  • Assembly  and  user  manual
  • Optional  SIM  card  and  modem

Features & Benefits

Increase Productivity

Increase productivity and reduce cost per ha.  Additionally, a website to manage all your plots, lines, tasks, tools and tractors.

Straight Forward Installation

  • Quick and easy installation by the farmer in less than 2 hours.
  • No wheel angle sensor to install - it is replaced by a gyroscope in the receiver.
  • The tablet communicates wirelessly via WIFI.

Easy User Interface

Operate your PowerSteer autosteering system using your Android tablet, smartphone or the optional FieldBee tablet. Communication between the antenna and the console is enabled by wifi hotspot. Simple and effective.

Signal Compatibility

The FieldBee PowerSteer system is RTK, NTRIP  and  single  base  (Centipede) compatible. The RTK signal is provided via SIM card.

Antenna

FieldBee's latest generation antenna uses modern technology to ensure reliability and accuracy. This includes a two frequency receiver, compatible with Galileo, GPS, Glonass and Beïdou.

Traceability

Record  your  work. If you have several FieldBee Autosteering systems, a line created can be shared between all your guidance data is saved on the cloud and not on the tablet. If you have a tablet failure, no worries; the data is stored on the cloud.

Simple to Operate

FieldBee offers a simplified mode that you can activate as you wish, or according to the driver:  Point A, Point B and a implement width. That's all there is to it, and that's 90% of the time!

Data Access

  • Access your data from the tractor or your PC
  • Easily manage lines, create job reports or create plots
  • Import plots from your FMIS or CAP file (coming soon)
  • Prepare tasks from your PC to save time

Share Lines

For those who use several FieldBee Powersteer systems, a line created with one guide is automatically available for the other Powersteer systems in the Cloud. No need for licence subscriptions or other additional costs. Thanks to the Cloud.

Options

Basic and Premium

Fieldbee  PowerSteer  Basic  includes  the  following  functions:

  • Straight line autosteering
  • Task reports in PDF format

Premium  Option  (offered  for  the  first  year)  includes:

  • Curved lines, automatic U-turn, line recording, creation of AB line directly on the map, management of turning points
  • Task reports in Excel or CSV format
  • 1 Premium Subscription per farm even if there are several Power Steer on the farm

Hardware Add-Ons

  • 10.1  inch  tablet
  • 2nd  tractor  kit

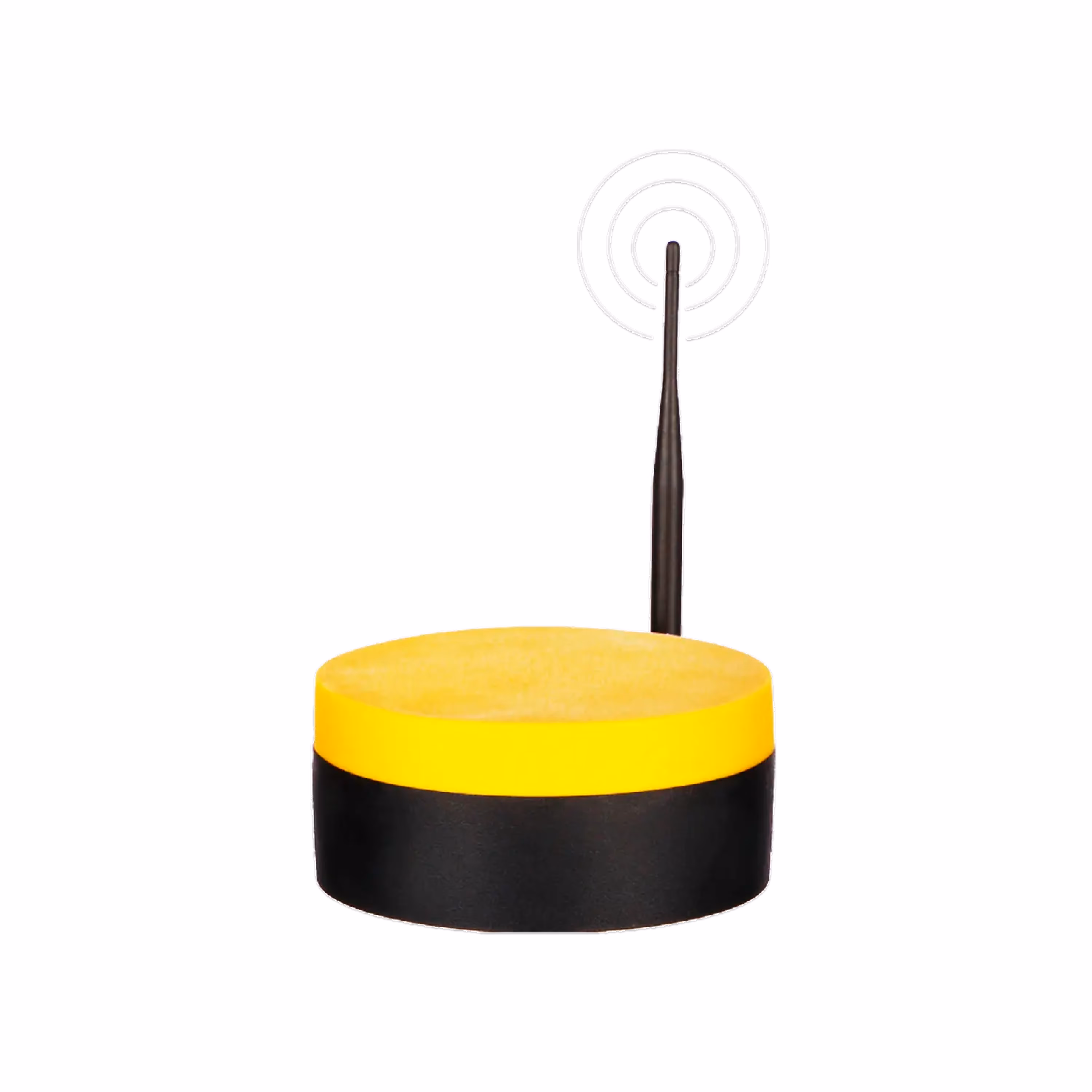

  • RTK  base
  • RTK  modem  (improves  internet  connection,  avoids network  cuts  in  case  of  phone  calls  if  you  use  the  mobile  phone  as  an  internet  modem)

NEW Control Switch Panel

FieldBee can now be operated from your fingertips on the seat armrest.  With this unique remote control, you can control:

  • Shift Lines Left
  • Shift Lines Right
  • Implement on/off on a map
  • Change view 2D/3D
  • Create A/B line
  • Shift line to your position
  • Turn auto-steering ON/OFF

ISOBUS

With FieldBee and the ISOBUS option, you have all the features of ISOBUS:

  • UT/VT ISOBUS screen
  • TC Basic
  • TC-SC section cutting
  • TC-GEO dose modulation.

If your tractor isn't ISOBUS, it makes it ISOBUS. It's the least expensive way to add ISOBUS.
